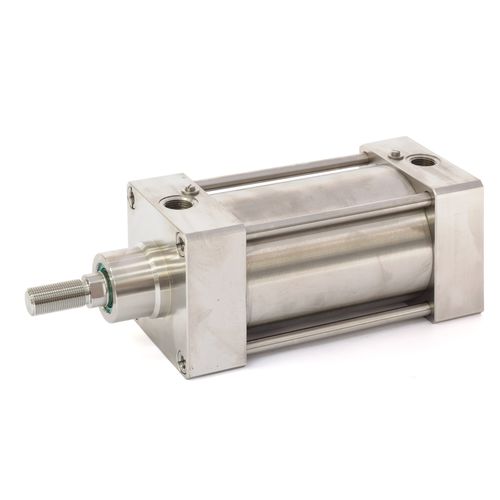

Pneumatic cylinder pistondouble-actingstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- piston
- Configuration
- double-acting
- Material
- stainless steel
- Norms
- ISO 15552
- Applications
- chemistry, food, industrial
- Other characteristics
- tie-rod, corrosion-resistant, ATEX
- Stroke
Max.: 500 mm
(19.685 in)Min.: 10 mm
(0.394 in)- Force
Max.: 7,359 N
Min.: 482 N
Description
COVERS
AISI 304 Stainless steel
TUBE
AISI 304 Stainless steel
TIE RODS
AISI 316 Stainless steel
SEALS
Polyurethane – NBR
GUIDE BUSH
Sintered Bronze
PISTON ROD
AISI 316 Stainless Steel
MAX PRESSURE
10 bar
WORKING TEMPERATURE
From -20°C a +80°C with dry air
FLUID
Filtered, lubricated or not, compressed air
