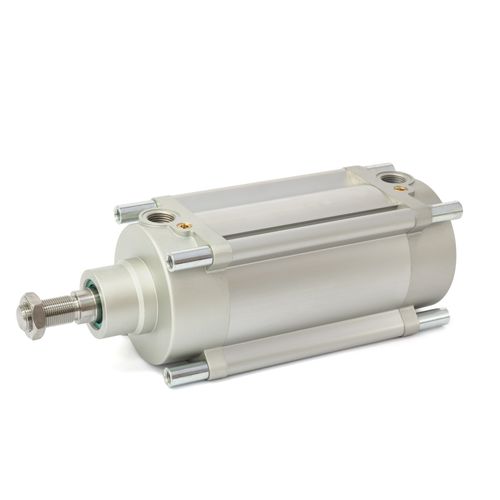

Linear actuator Easy Linepneumaticpistondouble-acting
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- pneumatic
- Technology
- piston
- Configuration
- double-acting
- Material
- stainless steel, aluminum
- Norms
- ISO 15552
- Applications
- industrial, for OEM
- Other characteristics
- tie-rod, ATEX
- Stroke
Max.: 500 mm
(19.685 in)Min.: 10 mm
(0.394 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 0 bar
(0 psi)- Force
Max.: 7,359 N
Min.: 482 N
- Ambient temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
COVERS
Painted die-cast aluminium
TUBE
Anodized aluminium
PISTON
Monoblock NBR
SEALS
Polyurethane – NBR
GUIDE BUSH
Sintered bronze
PISTON ROD
Chromium-coated steel
MAX PRESSURE
10 bar
WORKING TEMPERATURE
From -20°C to +80°C with dry air
FLUID
Filtered, lubricated or not, compressed air
