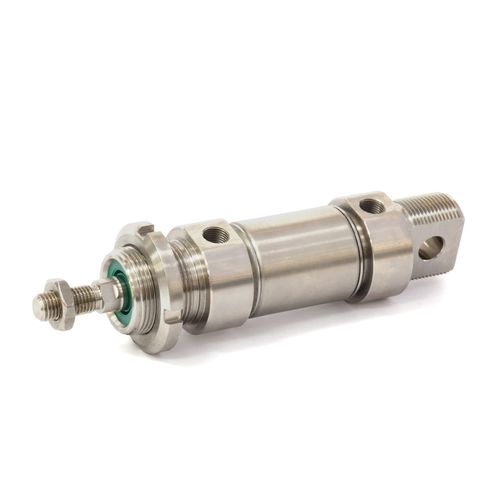

Pneumatic cylinder CP 04with piston roddouble-actingstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- with piston rod
- Configuration
- double-acting
- Material
- stainless steel
- Applications
- chemistry, food, industrial
- Other characteristics
- round, guided, corrosion-resistant
- Stroke
Min.: 10 mm
(0.394 in)Max.: 300 mm
(11.811 in)- Force
Min.: 482 N
Max.: 754 N
Description
COVERS
AISI 304 Stainless steel
TUBE
AISI 304 Stainless steel
PISTON
Aluminium
SEALS
Polyurethane – NBR
GUIDE BUSH
Sintered bronze
PISTON ROD
AISI 316 Stainless steel
MAX PRESSURE
10 bar
WORKING TEMPERATURE
From -20°C + 80°C with dry air
FLUID
Filtered, lubricated or not, compressed air
