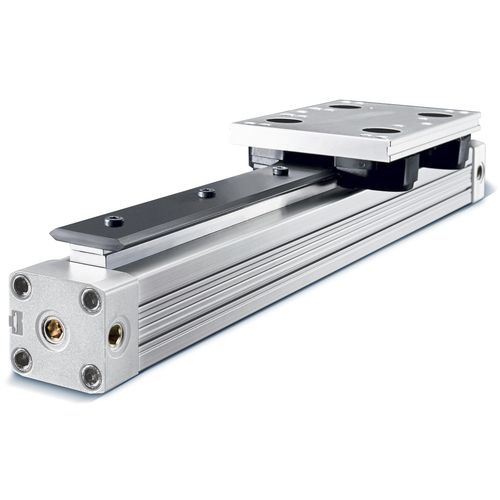

Rodless cylinder R1F seriespneumaticdouble-actingstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- rodless
- Configuration
- double-acting
- Material
- stainless steel, anodized aluminum
- Other characteristics
- slide, wear-resistant
- Stroke
Max.: 5,700 mm
(224.409 in)Min.: 100 mm
(3.937 in)- Pressure
Max.: 8 bar
(116 psi)Min.: 0.5 bar
(7.3 psi)- Ambient temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)
Description
STROKE
Ø25-50 mm: 100-5700 mm
AIR CONNECTION
M5, 1/8″G, 1/4″G, 3/8″G
SEALING BANDS
Stainless steel
SEALS
Oilproof synthetic material
V 1m/s: Viton
WORKING TEMPERATURE
From -10°C to +80°C (other temperatures on request)
