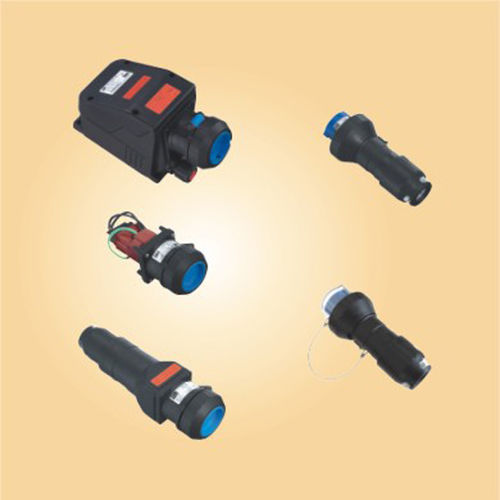

Built-in plug and socket CZ0521 explosion-proof
Add to favorites
Compare this product
Characteristics
- Mounting
- built-in
- Protection level
- explosion-proof
- Current
Max.: 16 A
Min.: 0 A
- VAC
Max.: 50 V
Min.: 0 V
Description
Ex mark:Ex Ⅱ2GD Ex de ⅡC T6 Gb Ex tD A21 T80℃ Ta≤45℃ Ex Ⅱ2GD Ex de ⅡC T5 Gb Ex tD A21 T95℃ Ta≤55℃
Intended use:Can be used in zone 1 ,zone 2,zone21,zone22
Ambient temperature:-40℃≤ Ta≤ 55℃
Degree of protection:IP66
Frequency:50/60Hz
Rated voltage:up to 50V
Rated current:Maximum 16A
Switch capacity:AC3 16A DC-21A 16A
Conformity to:CE
Cable entry:Wall type socket(Standard configure)1×M25 Φ8-17mm Plug:Cable outside diamet
