- CZ Explosion-proof Electric Appliances Co., Ltd.

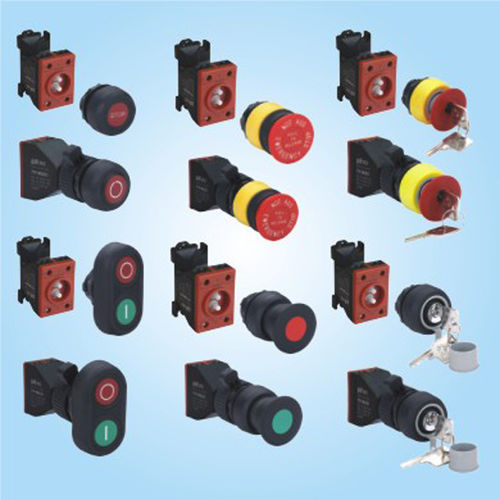

Key lock push-button switch M0201 electromechanicalboard-mount
Add to favorites
Compare this product
Characteristics
- Type
- key lock
- Other characteristics
- electromechanical, board-mount
Description
Ambient temperature use:-55℃≤Ta≤60℃
Degree of protection:IP20
Rated voltage:250V | 250V | 110V | 24V
Reginmentation use:AC12 | AC15 | DC13 | DC13
Rated current:16A | 10A 0.5A | 1A
Ambient temperature:Ta≤40℃|Ta≤60℃|Ta≤60℃|Ta≤60℃
Terminals:2x2.5m㎡
Mechanical life:1,000,000 times
Board front mounting rail type mounting:May be fixed by rails Ts35x7.5 or bolts
Board back type mounting:on 1-6mm panle
