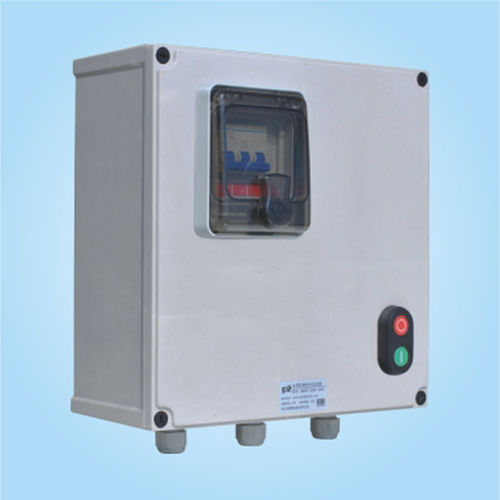

Floor-mounted electric cabinet 0581 fiberglass-reinforced polyester
Add to favorites
Compare this product
Characteristics
- Mounting
- floor-mounted
- Material
- fiberglass-reinforced polyester
- Width
234 mm, 352 mm
(9.2 in, 13.9 in)- Height
352 mm
(13.9 in)- Depth
161 mm
(6 in)
Description
Corrosion-proof mark:WF2
Degree of protection:IP65
Ambient temperature use:-40℃≤Ta≤55℃
Material of enclosure:glass fibre reinforced polyester(SMC)
Built-in component:C65 Miniature circuit breaker,LC2 AC contractor,LR2 thermal overload relay,C65/EDZ Moulded plastic circuit breaker PKZMC Motor protection switches M0202 Signal lamp components UK Increased safety terminal
Rated voltage:380/400V;50/60Hz
Rated current:1~630A
