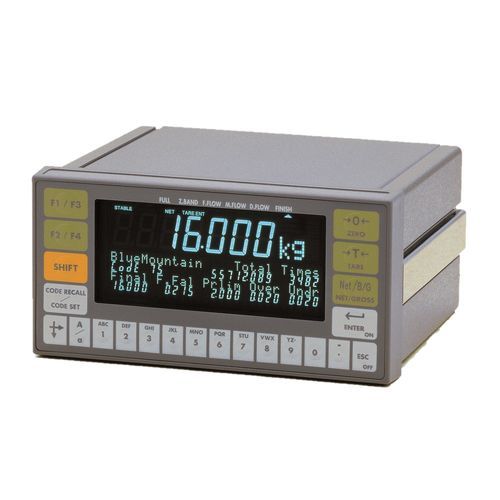

Digital weight indicator-controller AD-4402

panel-mounthigh-speedfor packaging machines

100 times/sec. High speed sampling. High display resolution to 16,000 counts. Up to 1 million counts of A/D resolution. Large and easy to see blue Vacuum Fluorescent Display (VFD). Uses a ten - key pad and function button that are designed for ease of operation and understanding. The main display has a 7 - digit VFD with 18mm tall characters. The sub display has a total of 54 5mm - tall dot matrix characters and displays the values and error comments. Pre-programmed with multiple sequences and functions for filling machines, simple mixing machines and a weight-checker and other applications. Stores 100 data for raw materials and 100 data for mixing codes. RS-485 Serial Output (Current Loop) standard feature allows you to link up to 32 units to the display. The Monitor Function shows each operating interface and provides a confirmation on the display. The compact body meets DIN requirements, while minimizing the depth of the indicator to135mm. With the proper optional interface, the AD-4402 is compatible with CC-Link, Device Net, PROFIBUS. Standard Modbus function available.
