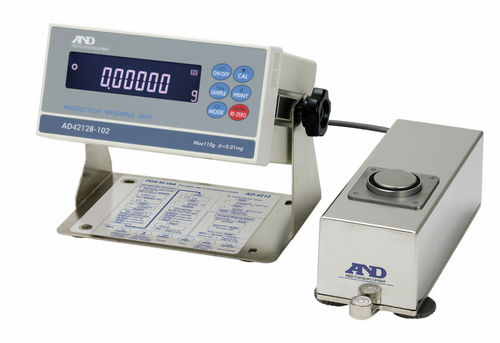

Digital weigh module AD-4212B series

cost-effectiveweighing

The AD-4212B Series are weighing sensors developed for highly precise measurement and control applications on production lines. By employing A&Ds unique Super Hybrid Sensor (SHS), the AD-4212B Series enables fast and stable weighing with a resolution as small as 0.01mg. These precise measurements are increasingly required in the pharmaceutical and other high-tech industries in order to control the dispensing, filling, applying or discharging of a very small amount of liquid or powder. The most outstanding feature of the balances in the AD-4212B Series is their response speed. The balances only require 4.0 seconds for 0.01mg resolution weighing and only 2.5 seconds when the resolution is 0.1mg. This feature will certainly be a great benefit to manufacturers since manufacturers are constantly striving for ways to maximize productivity in order to reduce costs. In addition, the AD-4212B Series boasts diverse connectivity and data output methods. An RS-232C, 5-level comparator contact output with a buzzer and an external contact input (for RE-ZERO and PRINT) is provided as standard with the AD-4212B. Also available is an optional BCD output and a LAN-Ethernet interface with the original software WinCT-Plus. There are four models in the AD-4212B Series: the AD-4212B-102 (110g × 0.01mg), AD-4212B-101 (110g/31g × 0.1mg/0.01mg, dual range), AD-4212B-201 (210g × 0.1mg) and the AD-4212B-301 (310g × 0.1mg). All models consist of a display unit and a separate weighing sensor, 80(W) × 230(D) × 90(H) mm: this small size makes it possible to fit our models into narrow spaces in factories. Please see the AD-4212B Series catalog for further details.
