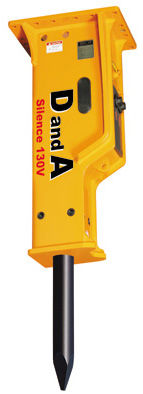

Hydraulic breaker D&A 130V

for small carriersvertical

TEMS / MODEL D&A 130V Operation Weight kg 900 lbs (1,985) Required Oil Flow lpm 80~140 gpm (21.12~36.96) Operating Pressure kg/㎠ 140~180 psi (2,030~2,610) Blow Rate bpm 350~900 2,234 Overall Length mm (88.0) Hammer Tool mm 105 inch (4.13) Relief Valve Setting Pressure kg/㎠ 210 psi (3,000) Suitable Carrier ton 10~15 lbs 22,000~33,000 Accumlator Pressure kg/㎠ 55 psi (781)
