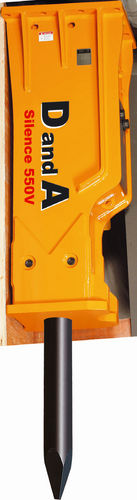

Hydraulic breaker D&A 550V for heavy-duty carriersvertical
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Applications
- for heavy-duty carriers
- Type
- vertical
- Carrier weight
Max.: 60 t
(66.1 us ton)Min.: 40 t
(44.1 us ton)
Description
ITEMS / MODEL D&A 550V
Operation Weight kg 3,800
lbs (8,379)
Required Oil Flow lpm 240~320
gpm (63.36~84.48)
Operating Pressure kg/㎠ 160~190
psi (2,320~2,755)
Blow Rate bpm 230~550
3,580
Overall Length mm (141.0)
Hammer Tool mm 175
inch (6.88)
Relief Valve Setting Pressure kg/㎠ 210
psi (3,000)
Suitable Carrier ton 40~60
lbs 88,000~132,000
Accumlator Pressure kg/㎠ 55
psi (781)
