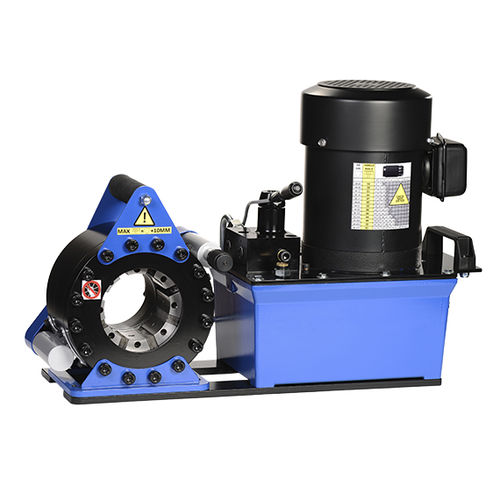

Automatic swaging machine SM 25L ACtube
Add to favorites
Compare this product
Characteristics
- Type
- automatic
- Treated product
- tube
Description
Max hose size:
1" 4 SH, 1 1/2"
Crimping force:
1200 kN
Max crimping diameter:
61 mm
Max opening diameter:
die diameter + 15 mm
Motor:
0.37kW 230V 1ph 50Hz
Possible to operate with:
12V or 24V inverter
Control:
Micrometer
Master dies opening / Length:
90/64,5 mm
Crimping range:
6-61 mm
Weight:
55 kg
Dimensions:
630 x 330 x 410 LxWxH mm
