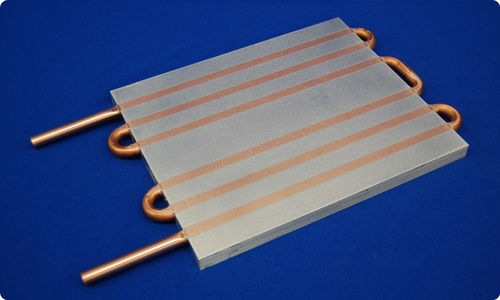

Liquid-cooled cold plate HB-6P Series

aluminumcoppercustom

D6 offers this series of 10 inches wide 6 pass cold plates to meet the demanding needs of the power dissipation presented by IGBTs and Power Diodes. The 10-inch wide plate allows for 2 rows of devices with the tubing prepared in a serpentine pattern of 3 passes and then continuing in a second 3 pass pattern. A substantial area of each device is cooled by 3 tubes and copper inserts, therefore providing low thermal resistance between the device and the liquid coolant.
