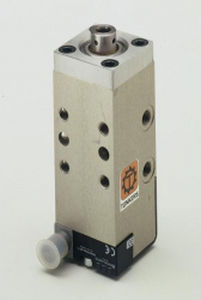

Pneumatic cylinder SZK 30cylinderclampingcompact
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- cylinder
- Applications
- clamping
- Other characteristics
- compact, flat
- Force
0.25 kN
Description
RETRACTABLE LOCATING PIN SZK 30
Automation Technology
Clamping Tehcnology
Pneumatic cylinders with a flat design & construction, multi-force cylinder with mechanic power transmission. guiding cylinders.
Retract cylinder with mounting hole on pistonrod for centering pins, compact housing of high strength aluminium material, drive via round cylinder Ø 30 for thrust and tensile forces of up to approx. 350/250 N, push rod secured against twisting in bronze bushing, integrated inductive sensors, combined stroke 20 mm, intermediate stroke lengths upon request.
Tractive force: 0.25 kN
Weight: 0.80 kg
Dimensions (L*W*H): 134.00 x 45.00 x 45.00 mm
