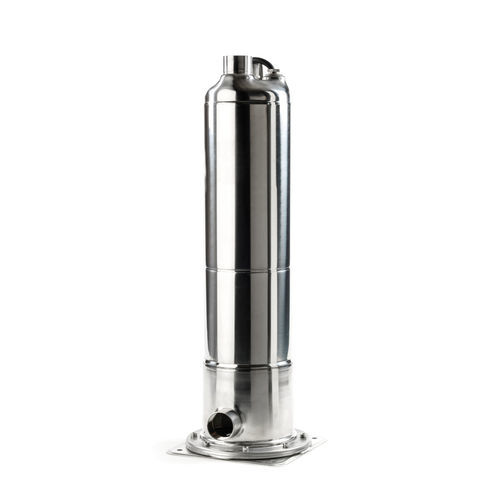

Water pump DIVER/PULSAR/PULSAR DRY
electricsubmersiblecentrifugal

water pump
water pump
water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
electric
Priming
submersible
Technology
centrifugal
Domain
industrial
Applications
lifting
Material
stainless steel, thermoplastic, brass
Other characteristics
multi-stage, close-coupled
Flow

Max.: 7.2 m³/h
(254.2656 ft³/h)

Min.: 0.9 m³/h
(31.7832 ft³/h)

Head

Max.: 101 m
(331'04" )

Min.: 0 m
(0'00" )

Power

Max.: 1.5 kW
(2.04 hp)

Min.: 0.55 kW
(0.75 hp)

Description

PULSOR pumps with their silent nature which are capable of eliminating any potential problems related to suction and un-priming can be easily installed within boreholes and sumps. these borehole pumps are closely coupled multi-stage pumps with hydraulic section fitted under the motor and is cooled by the pumped liquid. The Impellers, diffusers, strainer and oil sump are all in abrasion-proof thermoplastic nature. Unlike the above the outer liner, stator sleeve,upper head with delivery connection and closing ring are AISI 304 compliant and made of stainless steel. The Rotor shaft extension is also AISI 304 certified while the Elastomers in NBR. and have stainless steel screws. DIVER electric pumps are used for lifting clear water from boreholes, first water gathering tanks or storage, wells or water courses and are equipped for dispersing pressurized water to local establishments, little horticultural plants, and sprinkler frameworks for gardens and enclosures. The PULSAR DRY pumps are utilized within lifting and pressurization frameworks for water from essential accumulation tanks or wells and are suitable for giving pressurized water in the local frameworks and little scale cultivating.
