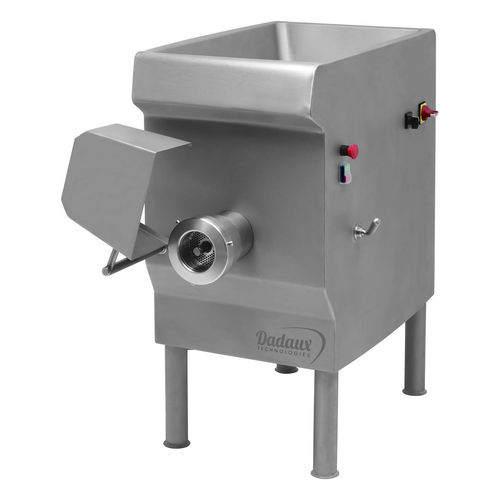

Classic meat mincer TX 114
automaticfloor-standingstainless steel

classic meat mincer
classic meat mincer
Add to favorites
Compare this product


Characteristics

Type
classic
Operation
automatic
Installation
floor-standing
Material
stainless steel
Electric powered
400V three-phase
Output

1,600 kg/h
(3,527.4 lb/h)

Hopper volume

50 l
(13 gal)

Output diameter

114 mm
(4.5 in)

Motor power

4 kW
(5.44 hp)

Grid diameter

5 mm
(0 in)

Length

765 mm
(30 in)

Width

534 mm
(21 in)

Height

1,130 mm
(44 in)

Weight

140 kg
(308.6 lb)

Description

We offer a wide range of laboratory cutters: manual mincer, mixer grinder, automatic mincer. With their high quality finish and appearance, they provide you with finely minced meat in total hygiene, and help stimulate your sales. SWIVELLING PROTECTIVE GRATE TO MAKE CLEANING EASIER | Entirely 18-10 stainless steel (crank case, body, screw...). Monobloc crank case. Dismantling of body just by unlocking of the side handle. Oil bath speed reducer (permently oiled). Hardened and grinding pinions in steel. Feeding hole with squared form in order to improve the drop of the meat. Available in enterprise system and unger system. 3 phases, 220V/380V, 50/60Hz. Complies with CE norms. Body and propeller well protiled to have a perfect mincing + tightness ring Grate protection checked by contactor of safety to facilitate the cleaning

VIDEO
