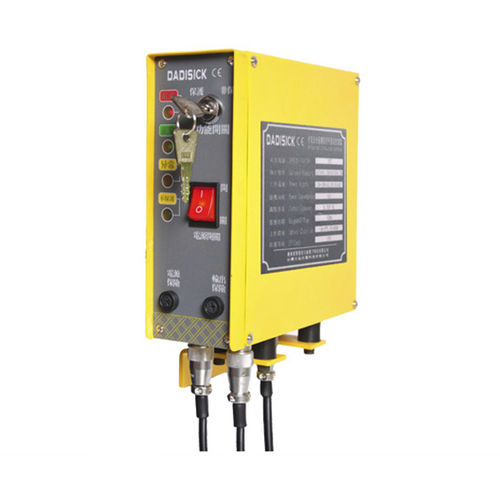

Light curtain controller

The external controller is used with the safety grating to control the on/off of the circuit, thereby controlling the high-power load path and real-time control of the load device to achieve the purpose of safe production. Product specification: The controller has two sets of normally open and normally closed output modes. Under normal conditions, one set is normally closed output, and one set is normally open output. When the grating detects that the object enters the safety protection area, it generates a trigger signal, and the output mode of the controller jumps instantaneously. Change, the output interface of the two groups is reversed, that is, the normally closed port becomes the normally open state, and the normally open port becomes the normally closed state. The two sets of ports are used together to facilitate the control of the device. Working voltage: AC220V. Output type: 220VAC/5A Working temperature: -10°C～+55°C Power: 5w Reset function: manual / automatic Single channel / dual channel optional
