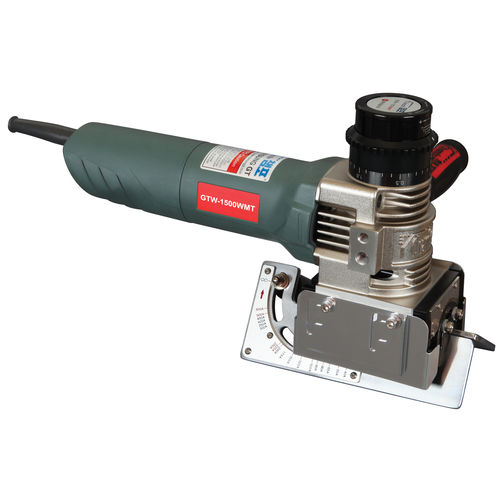

Electric chamfering machine GTW-1500WMT

hand-heldweld preparationsheet metal

- Plate work : min. 3mm or bigger ( order production : 3mm or less ). - Pipe O/D Bevelling (min. 40A (48.5mm) or bigger) and Plate beveling. - Maximum Beveling Amount up to 15 mm (thickness) at 30° / 10 mm (thickness) at 45°. - Patented One-touch Controller : Adjustment depth min. 0.1mm / Prevent in advance to be changed beveling amount due to vibration while operation / Only takes one second to adjust beveling amount and lock it. - Spindle moving system: the first in the world! Minimize weight with self-developed technology (the best cutting efficiency and the lightest within the same specification of beveling machine). - Optimized Face-mill Cutter : Easy to use, Quick work and Excellent cost savings, than existing Beveller (Peripheral milling type) or Grinder. Excellent working efficiency in the case of cutting steel, stainless steel(STS/SUS) and high yield structural steel(ATOS80) etc., due to reduces the contacted cross-sectional area of about 80% compared to Peripheral milling type of Beveller.
