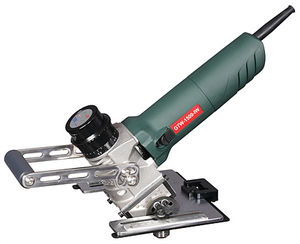

Electric chamfering machine GTI-1200
hand-heldfor pipe endsweld preparation

electric chamfering machine
electric chamfering machine
electric chamfering machine
Add to favorites
Compare this product


Characteristics

Operation
electric
Type
hand-held
Applications
weld preparation, for pipe ends, plate
Power

1,400 W, 1,700 W
(1.9 hp, 2.31 hp)

Chamfer width

Max.: 14.5 mm
(0.6 in)

Min.: 7.2 mm
(0.3 in)

Chamfer angle

Max.: 60 °

Min.: 25 °

Description

Height Adjustment One-touch Spline Controller Adjustment Minimum 0.1mm step Increments Beveling of curved plate and pipe (I/D, O/D) Usage Pipe size - min. 36 mm diameter or bigger Weight 6.0 kg Inserts 3EA APMT-1604PDSR-MM

VIDEO

Catalogs

Other Daesunggt co.,Ltd products

GTW (Bevelling machine)
