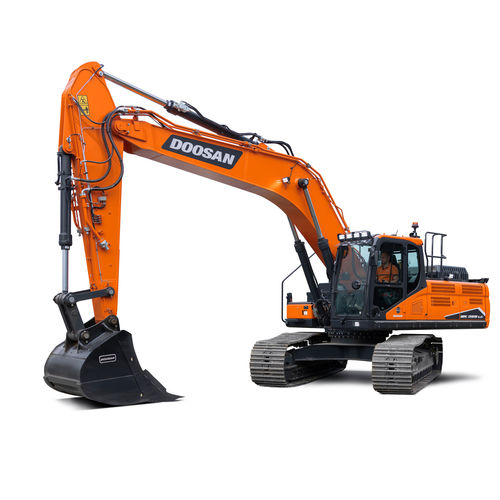

Large excavator DX380LC-7K

crawlerdieselconstruction

The DX380LC-7K model features a new generation engine to meet the latest Stage V engine emission regulations. It is a new solution without exhaust gas recirculation (EGR) to increase the quantity of air during combustion - the temperature during combustion is therefore higher and the amount of emission particles are reduced as much as possible. Thanks to the new technology, the diesel particle filter (DPF) requires really low maintenance. EngineScania DC09 Main pumps max flow2 x 350 l/m Number of cylinders5 Maximum traction43.4 t Tail swing radius3530 mm Bucket digging force25.9 t Arm digging force23.3 t Max. digging reach11930 mm Max. digging height10940 mm
