Diesel forklift D15S-5
LPGride-onhandling

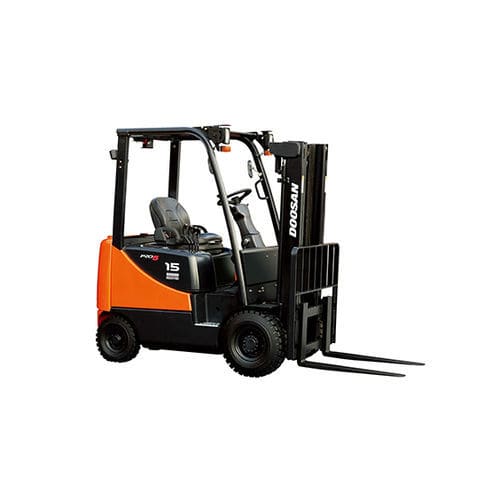

Diesel forklift - D15S-5 - Daewoo Industrial Vehicles - LPG / ride-on / handling
Diesel forklift - D15S-5 - Daewoo Industrial Vehicles - LPG / ride-on / handling
Diesel forklift - D15S-5 - Daewoo Industrial Vehicles - LPG / ride-on / handling - image - 2
Diesel forklift - D15S-5 - Daewoo Industrial Vehicles - LPG / ride-on / handling - image - 3
Add to favorites
Compare this product


Characteristics

Motor type
diesel, LPG
Operator
ride-on
Applications
handling, industrial, for warehouse, outdoor
Other characteristics
pneumatic tire, for heavy loads, high-performance
Carrying capacity

1,500 kg, 1,750 kg, 2,000 kg
(3,306.9 lb, 3,858.1 lb, 4,409.2 lb)

Overall width

1,070 mm
(42.1 in)

Load center distance

500 mm
(19.7 in)

Height to top of overhead guard

2,170 mm
(85.4 in)

Length to fork face

2,170 mm, 2,215 mm, 2,250 mm
(85.4 in, 87.2 in, 88.6 in)

Turning circle radius

1,977 mm, 2,022 mm, 2,050 mm
(77.8 in, 79.6 in, 80.7 in)

Travel speed

19 km/h
(11.8 mph)

Lifting speed

600 mm/s

Rated output

34,200 W
(46.5 hp)

Rated speed

2,400 rpm
(15,079.6 rad.min-1)

Cubic capacity

2,434 cm³
(82.3 US fl oz)

Description

• High powered and fuel efficient Diesel and LPG • Virtually maintenance-free oil-cooled disc brakes • 1 Speed powershift Transmission • Lift and Tilt Locking Hydraulic Control Valve • Enhanced maintenance and Serviceability • OSS(Operator Sensing System) - No truck moving with an operator’s absence on driver seat - Hydraulic lifting and lowering locking - Parking Brake warning - Seat Belt Indicator • Available Emission Regulation - Diesel : EPA Interim Tier IV / EU Stage IIIA - LPG : Non Certification / Tier III Certification Product Concepts Doosan Industrial Vehicle Pro5 Series, D(G)18S-5 are designed for a broad spectrum of heavy applications in manufacturing, warehousing, outdoor storage and material handling. The Pro5 Series are ideally suited for rugged working condition. These hard-working engine powered forklifts will meet the toughest challenges that customers throw at them including ramps, grades and rough underfoot conditions. Whether loading stacks, packing racks or stuffing trucks, D(G)18S-5 are guaranteed to impress both operators and operation’s personnel with its power, performance and productivity.
