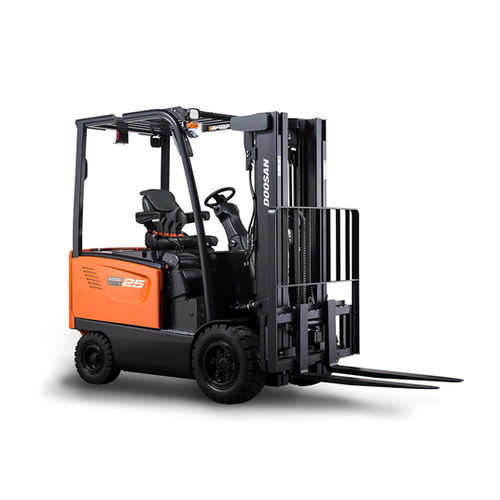

Counterbalanced forklift BxxS-7 series
electricride-onhandling

counterbalanced forklift
counterbalanced forklift
counterbalanced forklift
counterbalanced forklift
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Applications
handling
Other characteristics
4-wheel, counterbalanced, high-performance
Carrying capacity

2,000 kg, 2,500 kg, 3,000 kg, 3,200 kg
(4,409.2 lb, 5,511.6 lb, 6,613.9 lb, 7,054.8 lb)

Overall width

1,200 mm
(47.2 in)

Load center distance

500 mm
(19.7 in)

Height to top of overhead guard

2,220 mm
(87.4 in)

Length to fork face

2,196 mm, 2,226 mm, 2,377 mm, 2,407 mm
(86.5 in, 87.6 in, 93.6 in, 94.8 in)

Turning circle radius

2,040 mm, 2,060 mm, 2,190 mm, 2,220 mm
(80.3 in, 81.1 in, 86.2 in, 87.4 in)

Travel speed

18 km/h
(11.2 mph)

Lifting speed

320 mm/s, 340 mm/s, 390 mm/s, 440 mm/s

Description

Doosan AC electric forklift, designed based on DIV’s rich experience and advanced technologies, boasts high energy efficiency, outstanding maneuverability, economic efficiency, and eco-friendly (low emission) features. Main Features • - DOOSAN Exclusive ACT (Active Control Technology) • - Operator-Centric Performance Selection • - More Work per Battery Charge (Intelligent Torque Control) • - Intelligent Instrument and Control Panel • - Spacious Operator Compartment • - High Visibility Overhead Guard and Front-end • - Steering Angle Sensor • - Deluxe Suspension Seat with OSS (Operator Sensing System) • - Maintenance Free Electric Motors • - Run Time and Trouble Shooting Diagnostics • - Oil Cooled Disc Brakes • - Monitoring and Maintenance are based on a User friendly interface with service program • - Rugged and Durable Transaxle • - AC Controller has power to spare Product Concepts The 7 Series of B20/25/30/32S-7 electric counterbalance forklift trucks, continue to follow the core Doosan tradition of delivering simple, powerful performance, whilst most of all, delivering the best possible value for our customers. The specially designed ergonomic operator compartment keeps the operator in complete control at all times, improving productivity and reducing stress and fatigue. The new cell offers improved visibility and the latest design in ergonomic hydraulic controls. Thanks to an improved durable design and an additional stability system, Doosan’s new 7 Series electric tricks exceed the highest demands for safe operation. Extended maintenance intervals and advanced technology components reduce the overall cost of maintenance.
