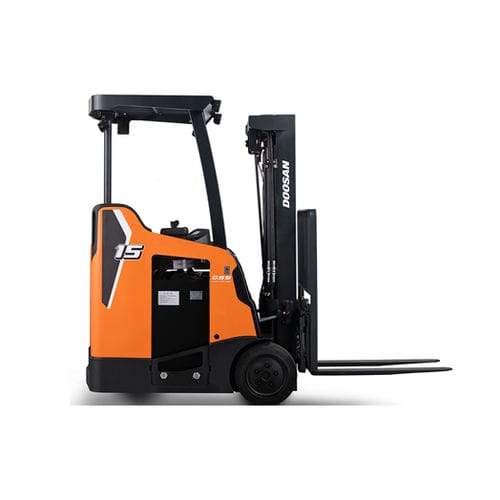

Electric forklift BxxSU-9 series
stand-onfor warehousenarrow-aisle

Electric forklift - BxxSU-9 series - Daewoo Industrial Vehicles - stand-on / for warehouse / narrow-aisle
Electric forklift - BxxSU-9 series - Daewoo Industrial Vehicles - stand-on / for warehouse / narrow-aisle
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
stand-on
Applications
for warehouse, narrow-aisle
Other characteristics
high-performance
Carrying capacity

1,500 kg, 1,800 kg, 2,000 kg
(3,306.9 lb, 3,968.3 lb, 4,409.2 lb)

Overall width

1,070 mm
(42.1 in)

Load center distance

500 mm
(19.7 in)

Height to top of overhead guard

2,235 mm
(88 in)

Length to fork face

1,675 mm, 1,715 mm, 1,780 mm
(65.9 in, 67.5 in, 70.1 in)

Turning circle radius

1,360 mm, 1,400 mm, 1,460 mm
(53.5 in, 55.1 in, 57.5 in)

Travel speed

12 km/h
(7.5 mph)

Lifting speed

280 mm/s, 305 mm/s, 330 mm/s

Description

Doosan warehouse equipment, together with advanced Reach Truck, offers various small logistics equipment models that set industry-standard. Stability, ergonomic design, and attractive appearance – they’re just class-leading products. Main Features • - DOOSAN Exclusive ACT (Active Control Technology) • - Standing Operator Type with 18” Large Size Drive Tire • - Operator-Centric Performance Selection • - More Work per Battery Charge (Intelligent Torque Control) • - Intelligent Instrument and Control Panel • - Spacious Operator Compartment • - High Visibility Overhead Guard and Front-end • - Enhanced Safety with OSS(Operator Sensing System) and GSS(Guardian Stability System) • - Ergonomic multifunctional control handle • - Maintenance Free Electric Motors • - Run Time and Trouble Shooting Diagnostics • - Auto Parking Brake • - Monitoring and Maintenance are based on a User friendly interface with service program • - Rugged and Durable Transaxle • - AC Controller has power to spare Product Concepts The new 9 Series of B15/18/20SU-9 stand-up rider electric forklift truck have the features of the standing operator type with low step height, competitive turning radius and 18” size drive tire suitable for warehouse, narrow space work, container and uneven road. The trucks continue to follow the core Doosan tradition of delivering simple, powerful performance, whilst most of all, delivering the best possible value for our customers. The specially designed ergonomic operator compartment keeps the operator in complete control at all times, improving productivity and reducing stress and fatigue. The new model offers the latest design in ergonomic hydraulic controls.
