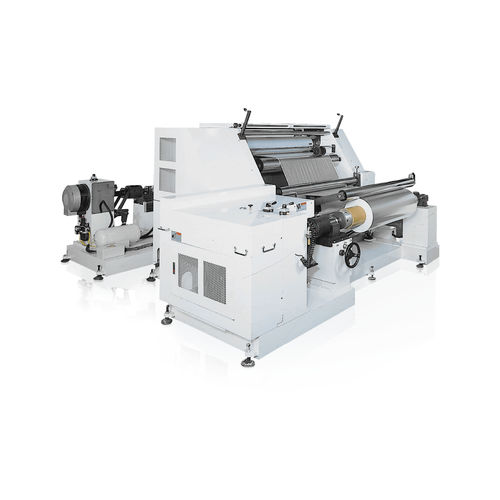

Embossing unit REF-B series

Application & Materials Paper laminate, Metalized Paper, Aluminum Foil + Paper Rewinding Type Center rewinding with single rewind shafts. Unwinding Section Equipped with air-shafts (dia.3") making loading and unloading easier. Pneumatic unwinding shaft locking device for safety protection. Equipped with pneumatic brake as well as electro/pneumatic converter for wide range tension control. Unwinding Tension Control Equipped with automatic tension controller with load-cells. The actual tension is digitally displayed, increasing the tension control precision with minimal operation efforts. Embossing Section Equipped with automatic constant hydraulic pressure control system. Individual hydraulic pump with two sets of hydraulic cylinder, ensure the constant embossing-pressure providing. Equipped with embossing roller and paper roller. Equipped with automatic counter which will stop the machine when reaching pre-set meters. Rewinding Section Equipped with rewind AC induction servomotor to provide constant tension. Equipped with rewinding airshaft (dia.6") making loading and unloading easier. Rewinding Tension Control Equipped with automatic tension controller with minimal operation effort. Press-roller equipped with constant pressure control system.
