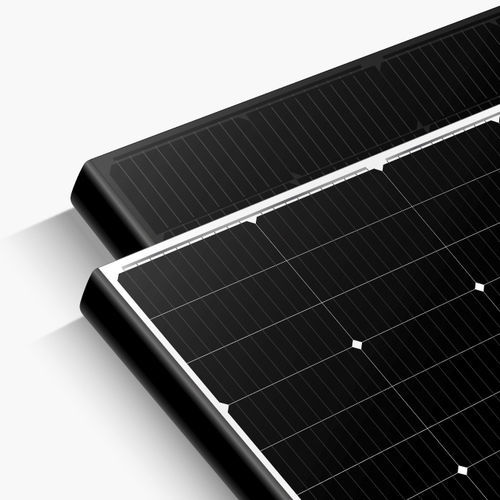

Monocrystalline silicon solar module DHM-72X10/BF/FS-540~555WCETUVblack
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Certifications
- CE, TUV
- Other characteristics
- black
- Peak power (Wp)
Min.: 402 W
Max.: 555 W
- Open-circuit voltage
Min.: 46.7 V
Max.: 50.4 V
- Short circuit current
Min.: 11 A
Max.: 13.8 A
- Max power voltage
Min.: 39.4 V
Max.: 42.6 V
- Max power current
Min.: 10.2 A
Max.: 13 A
- Module efficiency
20.89 %, 21.09 %, 21.3 %, 21.48 %
- Lenght
2,279 mm
(90 in)- Width
1,134 mm
(45 in)- Height
32 mm
(1 in)- Weight
29 kg
(63.93 lb)
Description
• Up to 20% generation gain from the rear-side The grid line transparent back sheet increases the back reflection, and the power generation gain increases with the back light.
• More than 25% module weight lighter Compared with the dual glass module, the weight is reduced by 25%, which is easy to install and save the cost of BOS.
• Higher generation efficiency and stability Low current, low hotspot and better low-irradiance performance, more stable power generation.
• Longer power output life span Anti PID, low acetic acid concentration, ensure the module linear power output for 30 years.
• Strong environmental adaptability Certified by Dust-Sand, Salt-Mist, Ammonia etc. weather resistance tests.
• Select Grade A crystalline silicon solar cells Grade A crystalline silicon solar cells make high-power output with cost-effective.
Catalogs
DHM-72X10/BF/FS 540~555W
2 Pages
