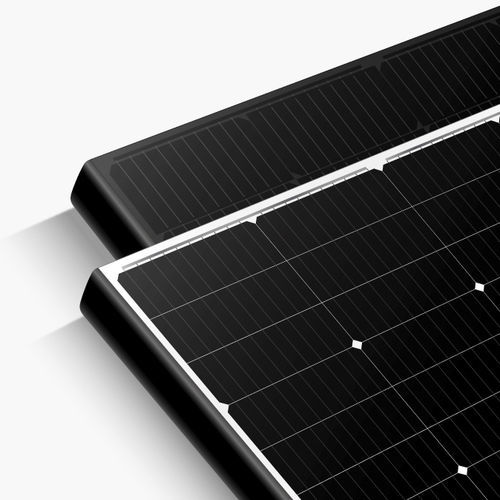

Monocrystalline silicon solar module DHM-T72X10/BF/FS-545~560WCETUVblack
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Certifications
- CE, TUV
- Other characteristics
- black
- Peak power (Wp)
Max.: 560 W
Min.: 405 W
- Open-circuit voltage
Max.: 75.1 V
Min.: 69.9 V
- Short circuit current
Max.: 9.4 A
Min.: 7.5 A
- Max power voltage
Max.: 63.4 V
Min.: 58.9 V
- Max power current
Max.: 8.8 A
Min.: 6.9 A
- Module efficiency
21.13 %, 21.3 %, 21.52 %, 21.72 %
- Lenght
2,279 mm
(90 in)- Width
1,134 mm
(45 in)- Height
32 mm
(1 in)- Weight
28.9 kg
(63.71 lb)
Description
• Low current, increase power generation 1/3 design, lower current and lower loss.
• Increase power generation by 6-15%+ Panel is capable to decrease power generation loss caused by Dust, reduce the hot spot risk.
• Up to 20% generation gain from the rear-side The grid line transparent back sheet increases the back reflection, and the power generation gain increases with the back light.
• More than 25% module weight lighter Compared with the dual glass module, the weight is reduced by 25%, which is easy to install and save the cost of BOS.
• Longer power output life span Anti PID, low acetic acid concentration, ensure the module linear power output for 30 years.
• Curved Surface 128°R Angle, Reduce holding pressure by 75%+ Curved Frame with ergonomic Design, optimized, Delivery and Installation Experience.
