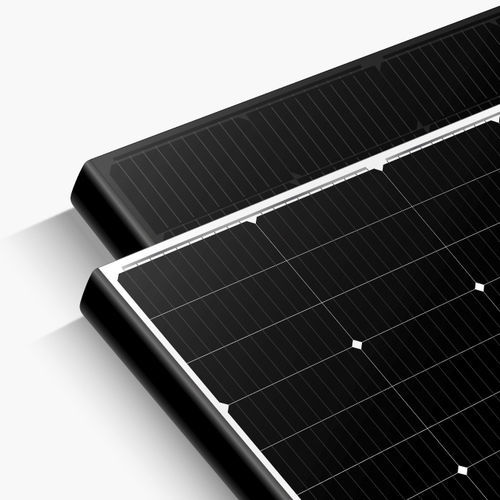

Monocrystalline silicon solar module DHM-72X10/FS-540~555WCETUVblack
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Certifications
- CE, TUV
- Other characteristics
- black
- Peak power (Wp)
540 W, 545 W, 550 W, 555 W
- Open-circuit voltage
49.8 V, 50 V, 50.2 V, 50.4 V
- Short circuit current
13.7 A, 13.8 A
- Max power voltage
42 V, 42.2 V, 42.4 V, 42.6 V
- Max power current
12.9 A, 13 A
- Module efficiency
20.89 %, 21.09 %, 21.3 %, 21.48 %
- Lenght
2,279 mm
(90 in)- Width
1,134 mm
(45 in)- Height
32 mm
(1 in)- Weight
29 kg
(63.93 lb)
Description
• Increase power generation by 6-15%+ Panel is capable to decrease power generation loss caused by Dust, reduce the hot spot risk.
• Curved Surface 128° R Angle Reduce holding pressure by 75%+ Curved Frame with ergonomic Design, optimized Delivery and Installation Experience.
• Revolutionary Assembling Technology Using excellent frame assembling technology, Strong Adhesion, Durable in Use.
• Excellent mechanical load capacity Certified by Dust-Sand, Salt-Mist, Ammonia etc. weather resistance tests and enhanced mechanical load: wind load (2400 Pa) and snow load (5400 Pa).
