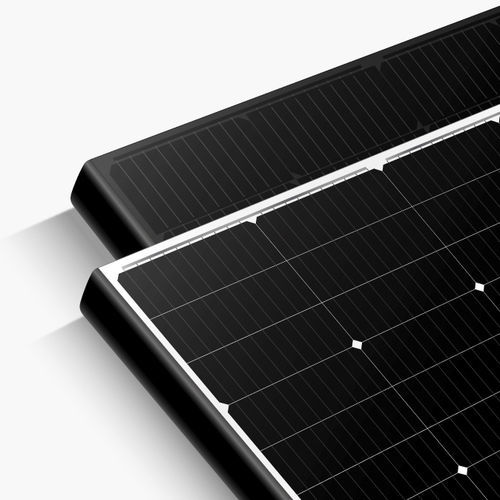

Monocrystalline silicon solar module DHM-60X10/FS(BB)-440~455WCETUVblack
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Certifications
- CE, TUV
- Other characteristics
- black
- Peak power (Wp)
440 W, 445 W, 450 W, 455 W
- Open-circuit voltage
41.2 V, 41.4 V, 41.6 V, 41.8 V
- Short circuit current
13.5 A, 13.7 A, 31.6 A, 31.7 A
- Max power voltage
34.8 V, 35 V, 35.2 V, 35.4 V
- Max power current
12.6 A, 12.7 A, 12.8 A, 12.9 A
- Module efficiency
20.39 %, 20.62 %, 20.85 %, 21.08 %
- Lenght
1,903 mm
(75 in)- Width
1,134 mm
(45 in)- Height
32 mm
(1 in)- Weight
23.8 kg
(52.47 lb)
Description
• Increase power generation by 6-15%+ Panel is capable to decrease power generation loss caused by Dust, reduce the hot spot risk.
• Curved Surface 128° R Angle Reduce holding pressure by 75%+ Curved Frame with ergonomic Design, optimized Delivery and Installation Experience.
• Revolutionary Assembling Technology Using excellent frame assembling technology, Strong Adhesion, Durable in Use.
• Excellent mechanical load capacity Certified by Dust-Sand, Salt-Mist, Ammonia etc. weather resistance tests and enhanced mechanical load: wind load (2400 Pa) and snow load (5400 Pa).
