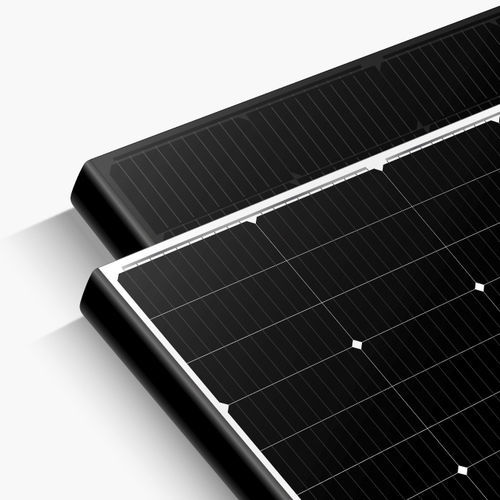

Monocrystalline silicon solar module DHN-54X16/BF/FS(BB)-420~430WPERCCETUV
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Features
- PERC
- Certifications
- CE, TUV
- Peak power (Wp)
Max.: 430 W
Min.: 316 W
- Open-circuit voltage
Max.: 38 V
Min.: 35.7 V
- Short circuit current
Max.: 13.8 A
Min.: 11.1 A
- Max power voltage
Max.: 32.5 V
Min.: 30.5 V
- Max power current
Max.: 13.2 A
Min.: 10.4 A
- Module efficiency
21.51 %, 21.76 %, 22.02 %
- Lenght
1,722 mm
(68 in)- Width
1,134 mm
(45 in)- Height
32 mm
(1 in)- Weight
22 kg
(48.5 lb)
Description
• Full-Screen Technology Increases PowerGeneration by 6-15%No water and dust, which reduces the power lossand maintenance cost
• Higher Power Generation EfficiencyN-type TOPCon module could increase power generationby 3%+ per watt compared with PERC module
• Higher Power OutputBifacial module back-side power increases 5-25%
• Lower Degradation Rate, PID ResistanceFirst-year ≤1%, 2-30 year ≤0.4%; excellent Anti-PID performance
• Lower Temp. CoeffificientMore power generation under high-temperature
• Better Dim Light PerformanceExcellent performance under dim light
Catalogs
DHN-54X16/BF/FS(BB) 420~430
2 Pages
