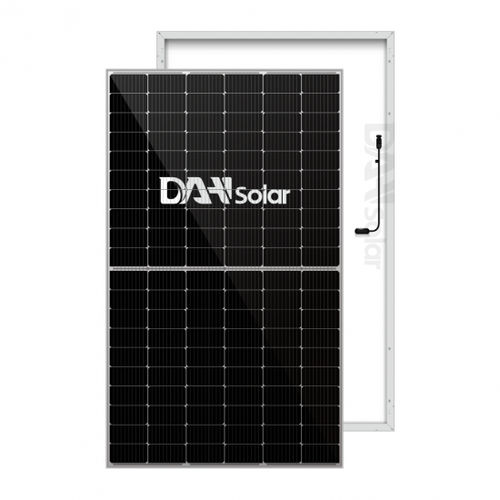

Monocrystalline silicon solar module DHM-60L9(BW)-370~380W
CETUVblack

Monocrystalline silicon solar module - DHM-60L9(BW)-370~380W - DAH Solar Co., Ltd. - CE / TUV / black

Monocrystalline silicon solar module - DHM-60L9(BW)-370~380W - DAH Solar Co., Ltd. - CE / TUV / black - image - 2

Monocrystalline silicon solar module - DHM-60L9(BW)-370~380W - DAH Solar Co., Ltd. - CE / TUV / black - image - 3

Monocrystalline silicon solar module - DHM-60L9(BW)-370~380W - DAH Solar Co., Ltd. - CE / TUV / black - image - 4

Add to favorites

Compare this product

Characteristics

Technology: monocrystalline silicon
Certifications: CE, TUV
Other characteristics: black
Peak power (Wp): 370 W, 375 W, 380 W
Open-circuit voltage: 41 V, 41.2 V, 41.4 V
Short circuit current: 11.4 A, 11.5 A
Max power voltage: 34.2 V, 34.4 V, 34.6 V
Max power current: 10.8 A, 10.9 A, 11 A
Module efficiency: 20.31 %, 20.59 %, 20.86 %
Lenght: 1,755 mm
(69 in)
Width: 1,038 mm
(41 in)
Height: 30 mm
(1 in)
Weight: 20 kg
(44.09 lb)

Description

• Optimal Process Design 166mm+9BB+Half-cut, higher power output. • Select Grade A Crystalline Silicon Solar Cells Grade A crystalline silicon solar cells make high-power output with cost-effective. • Stable Generation Performance Guaranteed 0~+5W positive tolerance and slower power attenuation: first year ≤2%, 0.55% per year from 2-25. • Process Upgraded Lower risk of hot spot and stronger anti-PID ability. • Higher Power Gains and Lower Losses Excellent low irradiance performance and low shadow loss. • Strong Environmental Adaptability and Great Durability Certified by Dust-Sand, Salt-Mist, Ammonia etc. weather resistance tests and enhanced mechanical load: wind load (2400 Pa) and snow load (5400 Pa)
