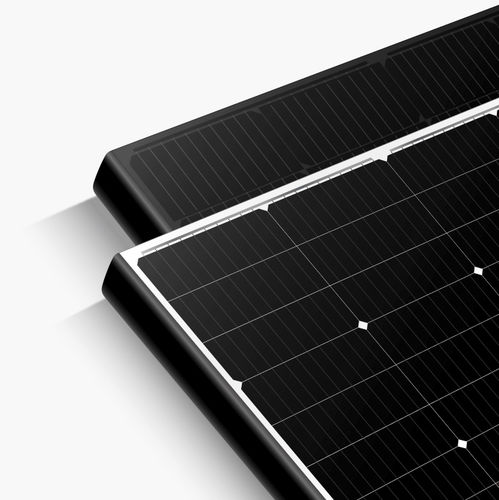

Monocrystalline silicon solar module DHM-72L9(BW)-445~455WCETUV
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Certifications
- CE, TUV
- Peak power (Wp)
445 W, 450 W, 455 W
- Open-circuit voltage
49.2 V, 49.3 V, 49.5 V
- Short circuit current
11.3 A, 11.4 A
- Max power voltage
42 V, 42.1 V, 42.3 V
- Max power current
10.6 A, 10.7 A, 10.8 A
- Module efficiency
20.47 %, 20.7 %, 20.93 %
- Lenght
2,094 mm
(82 in)- Width
1,038 mm
(41 in)- Height
30 mm
(1 in)- Weight
23.5 kg
(51.81 lb)
Description
• Optimal Process Design 166mm+9BB+Half-cut, higher power output.
• Select Grade A Crystalline Silicon Solar Cells Grade A crystalline silicon solar cells make high-power output with cost-effective.
• Stable Generation Performance Guaranteed 0~+5W positive tolerance and slower power attenuation: first year ≤2%, 0.55% per year from 2-25.
• Process Upgraded Lower risk of hot spot and stronger anti-PID ability.
• Higher Power Gains and Lower Losses Excellent low irradiance performance and low shadow loss.
• Strong Environmental Adaptability and Great Durability Certified by Dust-Sand, Salt-Mist, Ammonia etc. weather resistance tests and enhanced mechanical load: wind load (2400 Pa) and snow load (5400 Pa)
