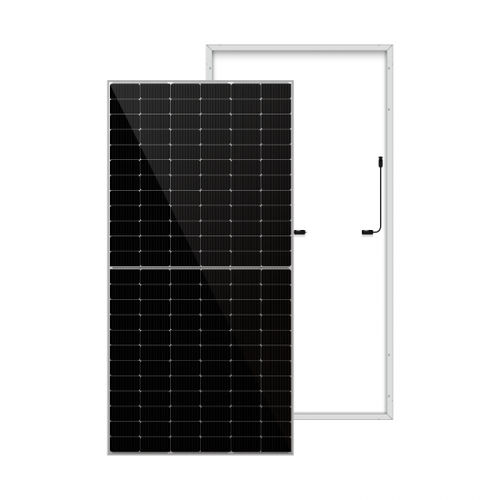

Monocrystalline silicon solar module DHM-72X10-540~555W
CETUVblack

Monocrystalline silicon solar module - DHM-72X10-540~555W - DAH Solar Co., Ltd. - CE / TUV / black

Monocrystalline silicon solar module - DHM-72X10-540~555W - DAH Solar Co., Ltd. - CE / TUV / black - image - 2

Monocrystalline silicon solar module - DHM-72X10-540~555W - DAH Solar Co., Ltd. - CE / TUV / black - image - 3

Monocrystalline silicon solar module - DHM-72X10-540~555W - DAH Solar Co., Ltd. - CE / TUV / black - image - 4

Add to favorites

Compare this product

Characteristics

Technology: monocrystalline silicon
Certifications: CE, TUV
Other characteristics: black
Peak power (Wp): 540 W, 545 W, 550 W, 555 W
Open-circuit voltage: 49.8 V, 50 V, 50.2 V, 50.4 V
Short circuit current: 13.7 A, 13.8 A
Max power voltage: 42 V, 42.2 V, 42.4 V, 42.6 V
Max power current: 12.9 A, 13 A
Module efficiency: 20.89 %, 21.09 %, 21.3 %, 21.48 %
Lenght: 2,279 mm
(90 in)
Width: 1,134 mm
(45 in)
Height: 35 mm
(1 in)
Weight: 29 kg
(63.93 lb)

Description

• More Power Generation Larger size of light receiving area and higher module conversion efficiency. • 10 Busbar Technology Higher power collection density improves power generation. • Stable Generation Performance Guaranteed 0~+5W positive tolerance and slower power attenuation: first year ≤2%, 0.55% per year from 2-25. • Higher Power Gains and Lower Losses Excellent low irradiance performance and low shadow loss. • Process Optimized and Upgraded Lower risk of hot spot and stronger anti-PID ability. • Strong Environmental Adaptability and Great Durability Certified by Dust-Sand, Salt-Mist, Ammonia etc. weather resistance tests and enhanced mechanical load: wind load (2400 Pa) and snow load (5400 Pa)
