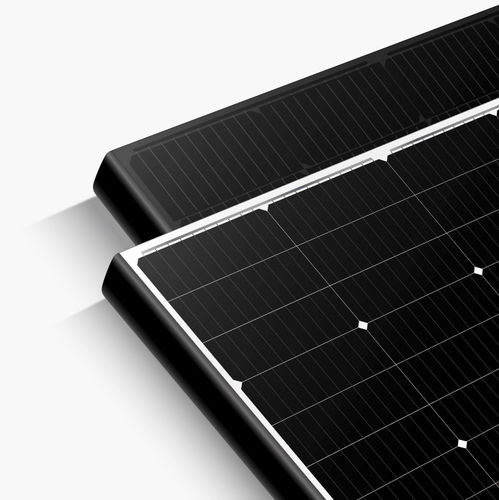

Monocrystalline silicon solar module DHN-78X16-600~630WPERCCETUV
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Features
- PERC
- Certifications
- CE, TUV
- Peak power (Wp)
Min.: 600 W
Max.: 630 W
- Open-circuit voltage
Min.: 54.8 V
Max.: 56 V
- Short circuit current
Min.: 13.8 A
Max.: 14.2 A
- Max power voltage
Min.: 46 V
Max.: 47.2 V
- Max power current
Min.: 13 A
Max.: 13.4 A
- Module efficiency
Min.: 21.46 %
Max.: 22.54 %
- Lenght
2,465 mm
(97 in)- Width
1,134 mm
(45 in)- Height
35 mm
(1 in)- Weight
32 kg
(70.55 lb)
Description
• Higher Power Generation EfficiencyN-type TOPCon module could increase power generationby 3%+ per watt compared with PERC module
• Lower Degradation Rate, PID ResistanceFirst-year ≤1%, 2-30 year ≤0.4%; excellent Anti-PID performance
• Lower Temp. CoeffificientMore power generation under high-temperature
• Better Dim Light PerformanceExcellent performance under dim light
Catalogs
DHN-78X16 600~630W
2 Pages
