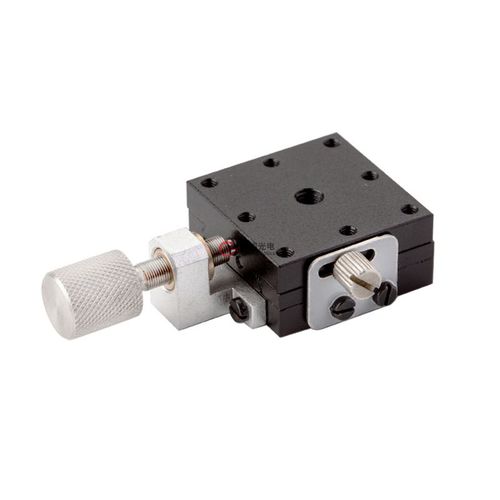

Translation stage GCM-125 series1-axisprecisionmicrometer-driven
Add to favorites
Compare this product
Characteristics
- Orientation
- translation
- Number of axes
- 1-axis
- Other characteristics
- precision, micrometer-driven
- Stroke
3.25 mm, 12.5 mm, 25 mm
(0.128 in, 0.492 in, 0.984 in)
Description
Ball and rod bearing combined with a micrometer (or precision lead screw) drive provide smooth and creep free linear translation with an accuracy of 0.001mm. If fitted with the precision GCM-4111 micrometer, an even higher accuracy can be accomplished. Use product GCM-53 series to build a 3D translation stage.
