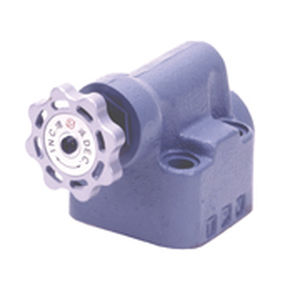

Pilot-operated pressure relief valve HDRI seriesfor water
Add to favorites
Compare this product
Characteristics
- Fluid
- for water
- Other characteristics
- pilot-operated
- Flow rate
30 l/min
(7.93 us gal/min)- Pressure
Min.: 0.5 MPa
Max.: 21 MPa
- Weight
0.5 kg, 2.9 kg
(1.1 lb, 6.39 lb)
Description
Achieves stable pressure control over a wide range of flow rates and also works as a safety valve. The main circuit pressure can be controlled remotely by connecting a relief valve for remote control to the vent port. High-vent type options are available.
Catalogs
No catalogs are available for this product.
See all of Daikin PMC‘s catalogs
