CNC lathe CK51 series
verticalsingle-column

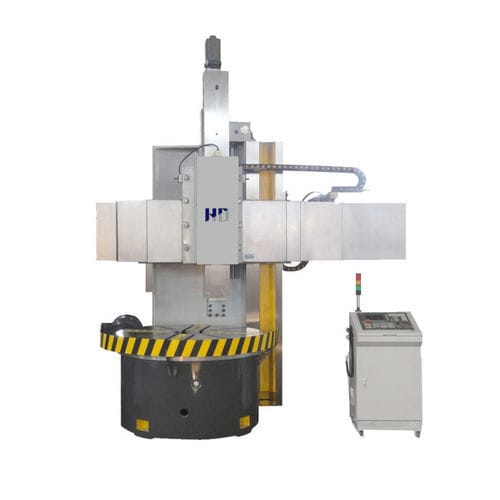

CNC lathe - CK51 series - Dalian Haidi Machinery Co., Ltd. - vertical / single-column
CNC lathe - CK51 series - Dalian Haidi Machinery Co., Ltd. - vertical / single-column
CNC lathe - CK51 series - Dalian Haidi Machinery Co., Ltd. - vertical / single-column - image - 2
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
vertical
Structure
single-column
Diameter

Min.: 1,250 mm
(49.21 in)

Max.: 2,600 mm
(102.36 in)

Spindle speed

Min.: 2 rpm
(12.566 rad.min-1)

Max.: 200 rpm
(1,256.637 rad.min-1)

Nominal power

22 kW, 30 kW, 37 kW
(29.9 hp, 40.8 hp, 50.3 hp)

Overall lenght

2,360 mm, 2,830 mm, 3,200 mm, 3,210 mm, 3,300 mm
(93 in, 111 in, 126 in, 126 in, 130 in)

Overall width

2,280 mm, 2,670 mm, 2,800 mm, 2,850 mm, 4,000 mm
(90 in, 105 in, 110 in, 112 in, 157 in)

Overall height

2,800 mm, 3,010 mm, 3,250 mm, 3,300 mm, 3,500 mm
(110 in, 119 in, 128 in, 130 in, 138 in)

Weight

Min.: 8 t
(9 us ton)

Max.: 26 t
(29 us ton)

Description

Worktable unti-water design; Equipped with SIEMENS 828D CNC control (optional, FANUC and GSK), Except CNC auto run ning mode. you can also use it in manual way like conventional machine. Feature ◆Worktable unti-water design. ◆Equipped with SIEMENS 828D CNC control (optional, FANUC and GSK). ◆Except CNC auto running mode, you can also use it in manual way like conventional machine. ◆Two configurations available, 4 steps gearbox plus AC variable motor, or 2 steps gearbox plus big torque DC stepless motor, with taping function and CSCS(Constant Surface Cutting Speed) function. ◆Adopt German Schneider and famous brand electric elements, independent electrical cabinet with air conditioner guarantee the stability and service life. ◆High grade casting from our own foundry following by proper heat treatment. ◆Hardened guideway(above HRC50). Perfect long lifetime and stable accuracy.
