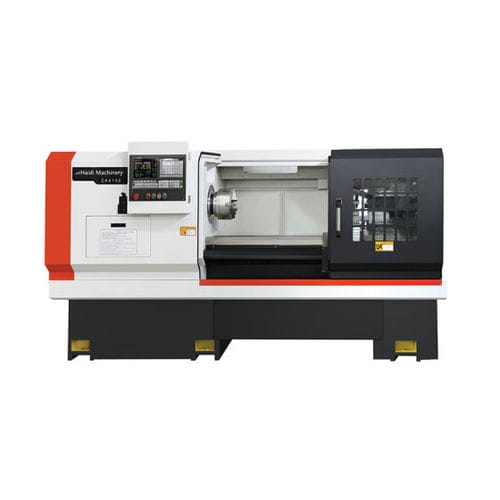

CNC lathe CK61 serieshorizontal2-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Diameter
400 mm, 500 mm, 850 mm, 1,000 mm
(15.75 in, 19.69 in, 33.46 in, 39.37 in)- Spindle speed
Max.: 1,600 rpm
(10,053.096 rad.min-1)Min.: 18 rpm
(113.097 rad.min-1)- Axe X
240 mm, 300 mm, 450 mm
(9 in, 12 in, 18 in)- Axe Z
Max.: 6,100 mm
(240 in)Min.: 650 mm
(26 in)- Rapids on X
4,000 mm/min
(3 in/s)- Rapids on Z
5,000 mm/min
(3 in/s)- Nominal power
5.5 kW, 7.5 kW, 11 kW, 15 kW
(7.5 hp, 10.2 hp, 15 hp, 20.4 hp)- Overall lenght
350 mm, 400 mm, 425 mm, 450 mm, 2,600 mm
(102 in, 138 in, 157 in, 167 in, 177 in)- Overall width
200 mm, 210 mm, 1,500 mm, 1,560 mm
(59 in, 61 in, 79 in, 83 in)- Overall height
200 mm, 210 mm, 1,650 mm, 1,710 mm
(65 in, 67 in, 79 in, 83 in)- Weight
1,800 kg, 2,000 kg
(3,968 lb, 4,409 lb)
Description
The machine could process different inner bore, circular conical surface and screw thread by numerical control system, especially suitable for the small and middle size shaft and plate workpiece fro rough processing to finish processing in batch. It has advantages like higher automation, simply programming and higher accuracy.
This machine is suitable to process the middle and large size workpiece in steel, cast iron, non ferrous metal material. With the feature of big power and high rigidity, this machine is applied to heavy cut the inner circle, ex-circle, end surface and thread in both metric and english system, and could drill and bore the holes.
