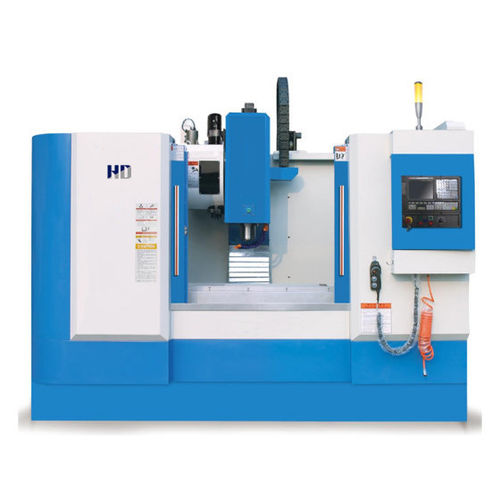

3-axis CNC machining center VMC series
verticalBT 40BT 50

3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
BT 40, BT 50
Number of tool stations
24 tools, 16 tools
Other characteristics
direct-drive
X travel

Max.: 1,500 mm
(59.06 in)

Min.: 450 mm
(17.72 in)

Y travel

Min.: 320 mm
(12.6 in)

Max.: 800 mm
(31.5 in)

Z travel

Min.: 420 mm
(16.54 in)

Max.: 700 mm
(27.56 in)

Rotational speed

6,000 rpm, 8,000 rpm
(37,699 rad.min-1, 50,265 rad.min-1)

Power

Min.: 3.7 kW
(5.03 hp)

Max.: 18.5 kW
(25.15 hp)

Work feed X-axis

15,000 mm/min, 18,000 mm/min, 24,000 mm/min, 32,000 mm/min, 36,000 mm/min
(10 in/s, 12 in/s, 16 in/s, 21 in/s, 24 in/s)

Work feed Y-axis

15,000 mm/min, 18,000 mm/min, 24,000 mm/min, 32,000 mm/min, 36,000 mm/min
(10 in/s, 12 in/s, 16 in/s, 21 in/s, 24 in/s)

Work feed Z-axis

15,000 mm/min, 18,000 mm/min, 24,000 mm/min
(10 in/s, 12 in/s, 16 in/s)

Table load capacity

Min.: 200 kg
(441 lb)

Max.: 1,500 kg
(3,307 lb)

Positioning accuracy

0.005 mm, 0.006 mm, 0.008 mm
(0.0002 in, 0.00024 in, 0.00031 in)

Repeatability

0.003 mm, 0.005 mm, 0.006 mm
(0.00012 in, 0.0002 in, 0.00024 in)

Weight

Min.: 530 kg
(1,168.45 lb)

Max.: 12,000 kg
(26,455.47 lb)

Overall length

Max.: 4,260 mm
(167.7 in)

Min.: 2,100 mm
(82.7 in)

Overall width

1,759 mm, 2,110 mm, 2,300 mm, 2,800 mm
(69.3 in, 83.1 in, 90.6 in, 110.2 in)

Overall height

1,892 mm, 1,960 mm, 2,300 mm, 2,700 mm, 3,200 mm
(74.5 in, 77.2 in, 90.6 in, 106.3 in, 126 in)

Description

Three shaft motor and screw with direct drive design, no belt or gear drive cause noise, clearance or vibration problems, improve the machining accuracy and efficiency. X/Y/Z adopt ball linear rail, small friction resistance, shorten fast shift time, improve production efficiency, at the same time has good repeatability, can complete high precision product processing. Base slide adopts four rail support design, support span is large, sliding more smooth. Ca realize a variety of disc, plate, CAM, mold and other complex parts clamping, milling, boring, expanding, reaming, rigid tapping and other processing, can be equipped with the fourth rotary axis, to meet the processing requirements of different parts.
