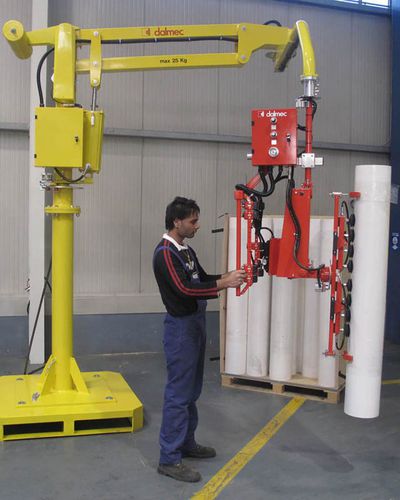

Reel handling manipulator

pneumaticwith suction cupfor textiles

Pneumatic balancer with suction cups tooling for gripping and 90° manual inclination of reels. Vacuum is generated by a multi-stage ejector Venturi type DALMEC has been able to offer solutions that allow continuous operation and safe over time. Our pneumatic manipulators, designed and manufactured according to specific movements are studied on the functional needs of the production processes of each individual client. So, over the years, DALMEC has become a widely recognized and established supplier of solutions designed to optimize human resources in any production or logistics chain, with an immediate impact on work quality and profitability. Hundreds of Dalmec manipulators are used for handling reels in the leading industries all over the world. Our manipulators are equipped with different types of gripping devices able to lift, rotate and tilt reels of all sizes and materials with a weight from 5 Kg to 900 Kg. Pneumatic balancer reels. Pneumatic balancer reels Dalmec Partner type, column version with portable baseplate. The baseplate allows an easy and fast use of the Manipulator in more workplaces. The Manipulator is equipped with a suction cups gripping device that allows the picking of the reels positioned horizontally or piled up in vertical position and to turn them of 360°. Characteristics: Max weight capacity: 550 Kg – Max working radius: 4000 mm – Vertical lift: 2450 mm
