Pneumatic manipulator

vacuumtoolfor wood

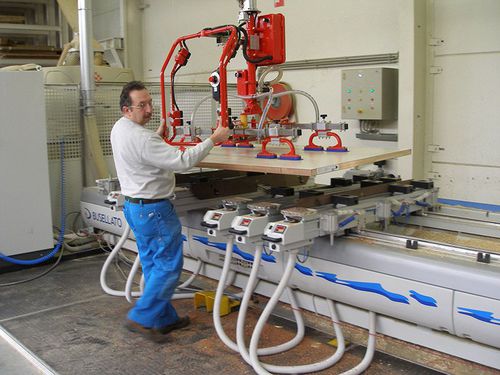

Manipulator type Partner, column mounted, equipped with suction cups gripping system for handling panels. The position of each suction cup is manually adjustable to allow the gripping of panels having different dimensions. The vacuum is generated by a Venturi ejector. Easy to use, Dalmec Manipulators allow the operator to handle panels or sheets within the operating area, in a fast, precise and secure way. Dalmec Manipulators for panels are custom-built, with specially adapted design, dimensions and picking systems to suit the specific requirements of the users and the various environmental conditions available. Pneumatic Manipulator Partner, column mounted version fixed to portable baseplate, equipped with suction cups gripping system for lifting panels from a trolley or pallet to a machine tool. The maximum capacity of the manipulator is 100 Kg. The position of the suction cups is manually adjustable to allow the gripping of panels or sheets having different dimensions. A pneumatic device also enables a 90° inclination of the load.
