Pneumatic manipulator

vacuumunloadinghandling

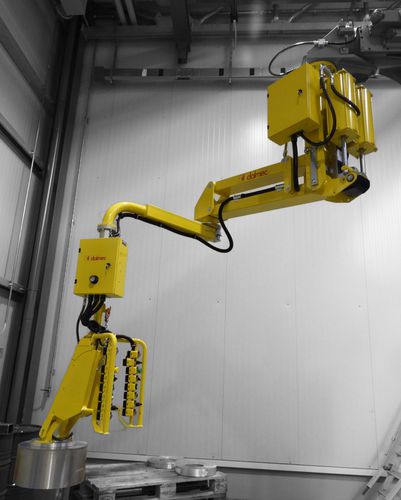

Manipulator with suction cups for aluminium sheet rolls Vacuum lifter Partner Equo, overhead trolley mounted version, equipped with suction cups tooling for the handling of aluminum sheet rolls with different dimensions and weights. The tooling is able to pick up the piled rolls, to tilt them through 90° thanks to a pneumatic device and to release them in a vertical position. The Manipulator is supplied complete with an overhead trolley to run in a tracking system, composed of two opposite aluminium U sections with connecting and stiffening ribs,complete with attachment points for an overhead suspension and end buffers. The junction between the various parts is done with screws. We consider safety a matter of utmost importance and a fundamental component common to all products that we manufacture in conformity with the UNI EN standards and in compliance with the EC Atex directives and with all safety guidelines and markings. Functional analysis, design, study of the different technical solutions available, simulations and prototypes creation are all phases in the production process that DALMEC carries out in close partnership with the client, with continuous controls and reviews during project development. Manipulator Partner Equo overhead version equipped with suction cups tooling for handling rolls of aluminum sheet having different size and weight, ideal for loading and unloading automatic warehouses. Well-trained design staff are able to develop state-of-the-art equipment, which ensure the operators ergonomic use of the Manipulators.
