Pneumatic manipulator

with suction cupfor mechanical componentspositioning

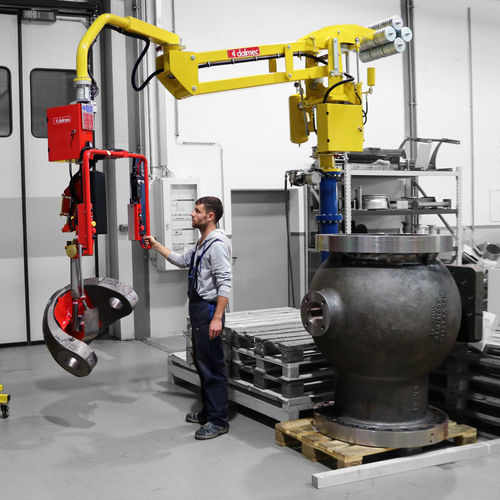

Handling of valve components – hydraulic valve assembly Manipulator Partner, column mounted, designed to assemble big hydraulic valves. The Manipulator equipped with pneumatic tooling provided with interchangeable suction cups, is able to grip different components with variable shapes and weights max 500 kg. The inclination of the component is obtained through a cable transmission system, controlled by a handwheel and allows the insertion of the various components in the central body of the valve, their positioning and assembly with precision and safety. Dalmec is present in companies all over the world. Dalmec engineers and consultants have the necessary know-how to work with you during the whole process, from conception and design to the implementation of a new sector solution. We consider safety a matter of utmost importance and a fundamental component common to all products that we manufacture in conformity with the UNI EN standards and in compliance with the EC Atex directives and with all safety guidelines and markings. Functional analysis, design, study of the different technical solutions available, simulations and prototypes creation are all phases in the production process that DALMEC carries out in close partnership with the client, with continuous controls and reviews during project development. Handling and assembly of hydraulic valve components Dalmec Manipulator Partner, column mounted version equipped with tooling with interchangeable suction cups gripping heads for handling components of big valves.
