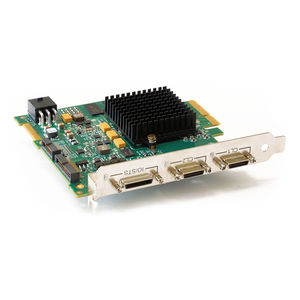

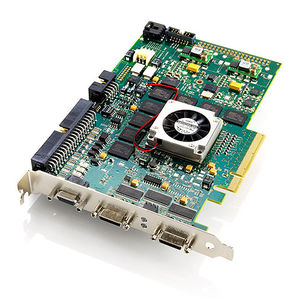

PCI Express data acquisition card Xtium2 series

Camera Link

Introducing Xtium2 PCIe Gen3 Series The Xtium2 series leverages the PCIe Gen3 x8 platform to deliver high- speed image transfers to host memory without CPU overhead. Featuring Camera Link HS® interface standards, supports Active Optic Cable and SFP+ modules, CoaXpress® 12, and Camera Link®. Key Features • Long cable lengths at maximum image acquisition rates • Data forwarding rate for distributed image processing • Fully supported by Sapera Vision Software SDKs Xtium2 CLHS PX8 Building on the field proven Teledyne DALSA’s Xtium family of frame grabbers, the Xtium™ 2 CLHS PX8 features CameraLink HS standard on the PCI Express™ Gen 3.0 platform. The Xtium2-CLHS supports Active Optical Cable (AOC) and industry standard CX4 cables. This single cable, single slot solution supports up to 7-CLHS lanes, each operating at 10.3 Gbits/s, to acquire images at up to 8.4 GBytes/s and transfer them using PCIe x8 slots to the host memory. Xtium2 CLHS FX8 Building on the field proven capabilities of Teledyne DALSA’s Xtium™ family of frame grabbers, the Xtium™2 CLHS FX8 features fiber optic cabling for the CameraLink HS interface on the PCI Express™ Gen 3.0 platform. The Xtium2 CLHS FX8 boards feature CLHS X-protocol for high efficiency transmission, support up to four bidirectional SFP+ modules to delivery aggregate bandwidth of 4.8 GBytes/s and can reach cable lengths beyond 100 meters - all in a compact, half-length, single slot solution.
