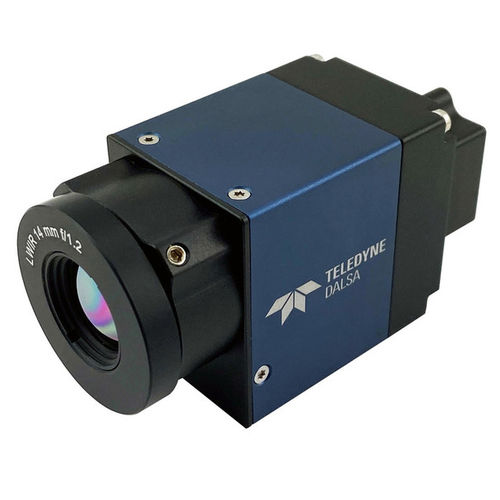

Infrared camera Calibir GX

for hazardous areasdigitalthermal imaging

Teledyne's Latest Microbolometer Technology The Calibir GX camera family features our latest microbolometer sensor, designed, fabricated, and packaged in our own foundry. With great sensitivity in longwave infrared range (8-12 µm), it features both shutter and shutterless operation and rapid image output on power up while delivering uniform response over the entire operating temperature range, making it an ideal component for thermal imaging systems requiring uninterrupted image acquisition. The GX series also offers our own advanced 21-bit ADC design for unparalleled intra-scene dynamic range without the need for a gain reduction, allowing for the best possible NETD over a vast range of temperature (>600C). General Specifications Resolution : 320 (H) x 240 (V) or 640 (H) x 480 (V) Frame Rate : 30/60 Hz Pixel Size : 17 µm Temperature Accuracy :GXM non-radiometric GXF: +/- 1°C accuracy from 25 to 45°C NETD : ≤50 mK; F/1.0, at 30 fps Size : 29 mm x 37 mm x 59 mm Mass : 66.7 g (without lens) Operating Temp : -40°C to 65°C I/O Options : GigE Vision, CSI-2 Export Control The Calibir GX cameras are currently classified as a "Dual Use" item under Group 1 (1-6.A.3.b.4.b) of the Canada Export Control List and Category 6 (6.A.3.b.4.b) under the Wassennaar Arrangement on Export Control for Conventional Arms and Dual-Use Goods and Technologies. As such, the Camera is subject to export control – export authorization is required to export the Camera from Canada, whether on a permanent or temporary basis.
