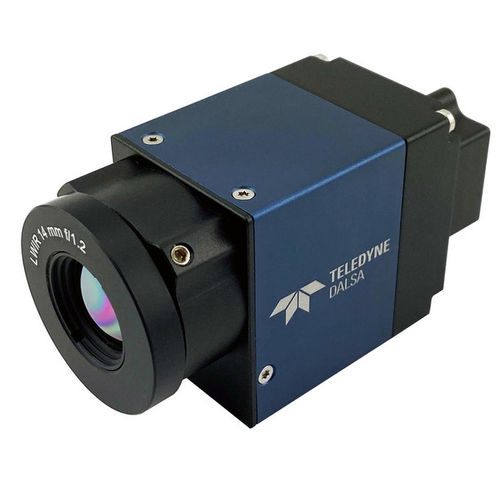

Infrared camera Calibir DXM640

machine visionVGAthermal imaging

Greater functionality. Same small size The Calibir uncooled Long Wave Infrared camera platform offers outstanding shutterless imaging performance and is optimized for Size, Weight and Power (SWAP). The Calibir DXM640 series features both shutter and shutterless operation and rapid image output on power up while delivering uniform response over the entire operating temperature range, making it ideal for thermal imaging applications requiring uninterrupted image acquisition. ULIS’s gen2 sensor offers an improved NETD and the updated calibration include customized gain correction on a per lens basis to offer even better image performances and response uniformity. Export Control The Calibir DXM640 cameras are currently classified as a "Dual Use" item under Group 1 (1-6.A.3.b.4.b) of the Canada Export Control List and Category 6 (6.A.3.b.4.b) under the Wassennaar Arrangement on Export Control for Conventional Arms and Dual-Use Goods and Technologies. As such, the Camera is subject to export control – export authorization is required to export the Camera from Canada, whether on a permanent or temporary basis. Packed with powerful features • 640x480 VGA resolution • 17 μm square pixels • 29mm x 37mm x 59.53mm • Gigabit Ethernet (GigE) • General purpose opto-coupled input/output (external trigger,user, count, or timer driven triggering) • Flexible general purpose Counter and Timer functions for internal/external controls • Defective Pixel replacement • Adaptive Image Enhancement • IEEE1588-2008 Precision Time Protocol synchronization capable • Built-in Pseudo-color for enhanced visualization • Image metadata supported
