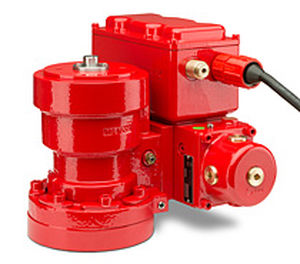

Electro-hydraulic valve actuator LPU Frotarydouble-actingwith wireless remote control
Add to favorites
Compare this product
Characteristics
- Type
- electro-hydraulic
- Movement
- rotary
- Configuration
- double-acting
- Other characteristics
- with wireless remote control
Description
The LPU - (Local Power Unit) - is an integrated electro-hydraulic system for remote control of valves and actuators. The LPU F version allows the LPU to be installed in areas where flooding is at risk. The LPU F can withstand flooding down to 70 meters for 7 days (IP68).
The LPU is especially developed for mounting direct on valve actuators, primarily on board ships. The LPU consists of a hydraulic pump which is driven by an asynchronous capacitor motor and several valve functions.
IP68 7 bar for 7 day
Has no external indication cable
Easy de-airing and oil filling
Matches Damcos actuators
Adjustable flow 250 - 1000 ml/min.
One size for all actuator
Plugs for oil checking
Low energy consumption by means of automatic pumping reduction (Patented)
Catalogs
No catalogs are available for this product.
See all of Damcos‘s catalogs
