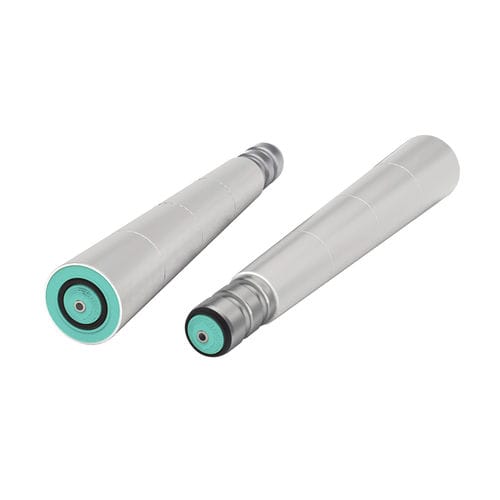

PVC conveyor roller 2640Series

for heavy loads

1. Based on the 2240 Series, covered with grey polypropylene taper sleeve; abrasion resistant, low noise, shockproof. 2. The bearing end cap consists of a precision ball bearing, a polymer housing and end cap seal. Combined they provide an attractive, smooth and quite running roller. 3. The design of the end cap protects the bearings by providing excellent resistance to dust and splashed water. 4. The roller is light, easy to start-up. 5. The position of the grooves can be customized. 6. The load capacity of the roller depends on the drive capacity of the O-belt. The weight of single items to be conveyed should not exceed 30kg. 7. Temperature range: -5℃ ~ 40℃. DtShaftTaper LegthD1D2 Φ501.511hex,Φ12/15300Φ52.5Φ71.2 350Φ55.6Φ77.6 400Φ52.5Φ77.6 450Φ55.6Φ84.0 500Φ52.5Φ84.0 550Φ55.6Φ90.4 600Φ52.5Φ90.4 650Φ55.6Φ96.8 700Φ52.5Φ96.8 750Φ55.6Φ103.2 800Φ52.5Φ103.2 850Φ55.6Φ109.
