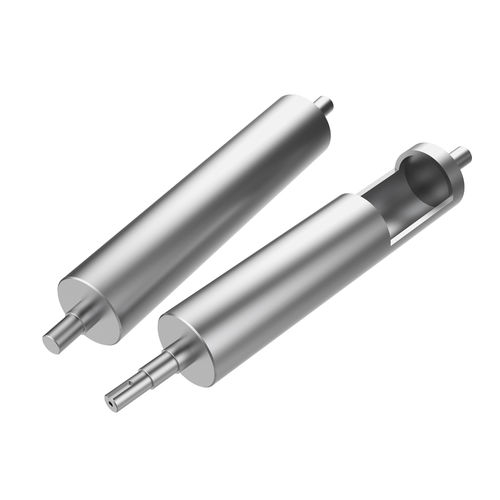

Stainless steel conveyor roller BP-D Series

for heavy loads

① Driven Pulley： Main driving component for centre drive belt conveyors: Select BP-D series pulley (rotating shaft). ② Head & Tail Pulley： Installed at each end of a belt conveyor according to the different drive type and structure: a、Centre drive: Change the belt direction: Select BP-R series pulley (fixed shaft) or DP-D series pulley (rotating shaft) b、Head or Tail drive: Drive Pulley: Select BP-D series pulley (rotating shaft) Idler Pulley: Select BP-R series pulley (fixed shaft) or BP-D series pulley (rotating shaft). ③ Snub Pulley： Used to increase the belt wrap angle for the driven pulley, tension and tracking the belt. Select BP-R series pulley (fixed shaft) or 1200 series conveyor roller (anti-static). ④ Carrying Roller： Used to support the belt, simplify structure and reduce friction: Select 1200 series conveyor roller (anti-static)
