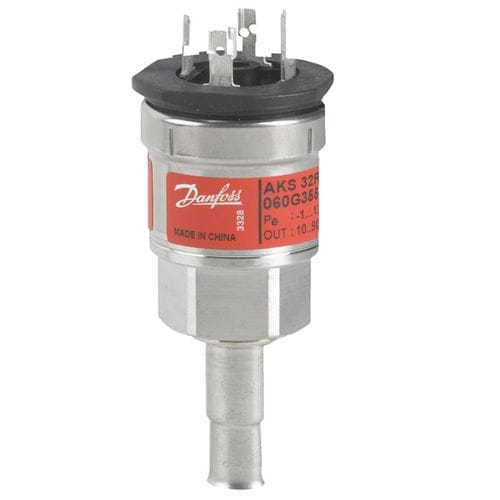

Relative pressure transmitter AKS 32R

membraneratiometricflush diaphragm

AKS 32R is a ratiometric pressure transmitter that converts the measured pressure to a linear output signal. The output signal is relative to the supply voltage meaning that the min. pressure output will be 10% of the actual supply voltage and the max. pressure output will be 90% of the actual supply voltage. At a supply voltage of 5 V, the output signal is: • 0.5 V at min pressure range • 4.5 V at max. pressure range The robust design and the ratiometric output signal makes the transmitter suitable for systems together with ratiometric A/D converters within a number of fields: • A/C systems • Refrigeration plant • CO2 plant • Process control • Laboratories Features • Highly developed sensor technology means great regulation accuracy • Selective temperature compensation • Compatible with all refrigerants incl. ammonia and CO2 • Robust construction gives protection against mechanical influences such as shock, vibration, and pressure surge • Polarity protected inlets • Sealed gauge measuring principle (pressure reference = 1013 mbar) • For use in zone 2 explosive atmospheres Product details Gross weight - 0.136 Kilogram Net weight - 0.12 Kilogram + output - Pin 3 + supply - Pin 1 - common - Pin 2 Accuracy, max. [±FS - 0.8 % Accuracy, typical [±FS - 0.3 % Approval standard - 6967179 E227388 E31024 CE evaluated - Yes Contain batteries - No Electrical conn. Male/Female - Male Electrical connection - Angular connector Electrical connection size - 4 pin Electrical connection standard - EN 175301-803-A Flush diaphragm - No High Clipping Level - 98 Identical product - 060G4254 In scope of WEEE - Yes Intrinsically safe - No Other RoHS documentation - Saudi Arabia RoHS
