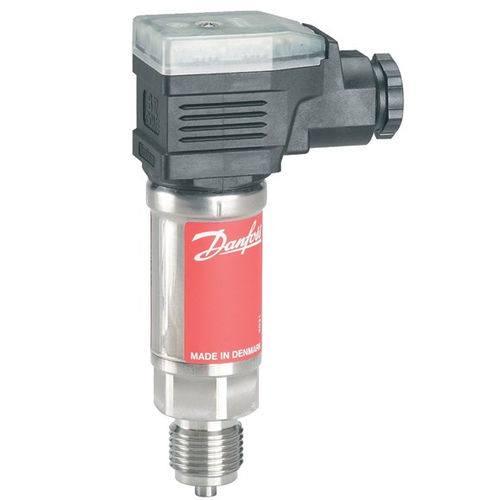

Relative pressure transmitter MBS 33M

absoluteanalog4-20 mA

The high accuracy transmitter MBS 33M is designed for use in almost all marine applications, and offers a reliable pressure measurement, even under harsh environmental conditions. The flexible pressure transmitter programme covers a 4 – 20 mA output signal, absolute or gauge (relative) versions, measuring ranges from 0 – 1 to 0 – 600 bar. A wide range of pressure and electrical connections. Excellent vibration stability, robust construction, and a high degree of EMC / EMI protection equip the pressure transmitter to meet the most stringent marine requirements. Features • Designed for use in severe maritime environments • All relevant marine approvals • Enclosure and wetted parts of acid-resistant stainless steel (AISI 316L) • A wide range of pressure connections • Fully digitally compensated Product details Gross weight - 0.238 Kilogram Net weight - 0.216 Kilogram + supply - Pin 1 - common - Pin 2 Adj. zero point and span - No CE evaluated - Yes China RoHS compliance - Yes Contain batteries - No Electrical conn. Male/Female - Male and Female Electrical connection - Angular connector Electrical connection size - M20 Electrical connection standard - EN 175301-803-A EU RoHS exemption clause - No Flush diaphragm - No High Clipping Level - 22.4 Intrinsically safe - No Low Clipping level - 3.6 Output signal - Current Output signal [mA] [max] - 20 mA Output signal [mA] [min] - 4 mA Packing format - Multi pack Pressure connection HEX [mm] - 27 mm Pressure connection size - 1/2 Pressure connection standard - EN 837 Pressure connection type - G Pressure Male/Female - Male
